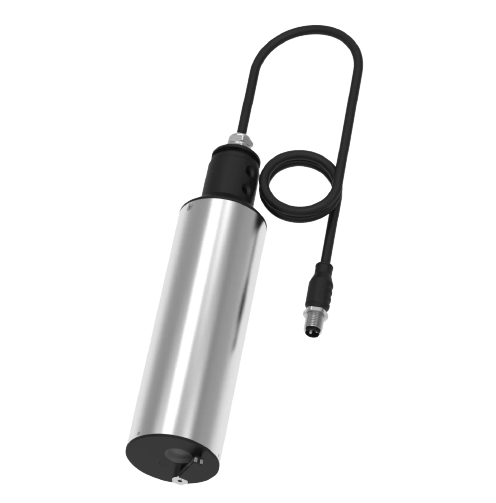

VizSens-Turb

VizSens-Turb

Model No: N.A

The VizSens-Turb is a highly capable turbidity sensor known for its accurate and stable measurements. Equipped with advanced infrared scattered light technology, it offers excellent repeatability and reliability. With a built-in self-diagnosis function and optional automatic cleaning, it ensures data accuracy while reducing maintenance efforts. The sensor’s digital technology provides high anti-jamming capacity and enables seamless integration with other equipment. The VizSens-Turb is a user-friendly solution with plug-and-play installation, making it suitable for a wide range of applications in different industries.

ENQUIRE NOW
DOWNLOAD CATALOGUE
Technical Specification

Sensor Specifications

Dimensions & Construction

  • Dimensions: Diameter 60 mm × Length 261 mm
  • Weight: 1.65 kg
  • Protective Rating: IP68 / NEMA6P

Measurement Performance

  • Measurement Range: Turbidity 0.01–100 NTU, 0.01–4000 NTU
  • Resolution: 0.01–0.1 NTU, based on range
  • Repeatability: ±2%
  • Measurement Accuracy: Less than ±2% of the measured reading or ±0.1 NTU, whichever is greater
  • Measuring Temperature: 0–45°C

Operating Conditions

  • Pressure Range: ≤ 0.4 MPa
  • Flow Rate: ≤ 2.5 m/s (8.2 ft/s)

Power Supply

  • AC Supply: 85–500 VAC (50/60Hz)
  • DC Supply: 9–36 VDC

Materials of Construction

  • Main Material: SUS316L (fresh water), Titanium Alloy (ocean marine)
  • Body: SUS316L (fresh water), Titanium Alloy (ocean marine)
  • Cover: Polyphenylene + Glass Fiber
  • Cable: Polyurethane

Cable Specifications

  • Standard Cable Length: 10 m
  • Maximum Extendable Length: 100 m
