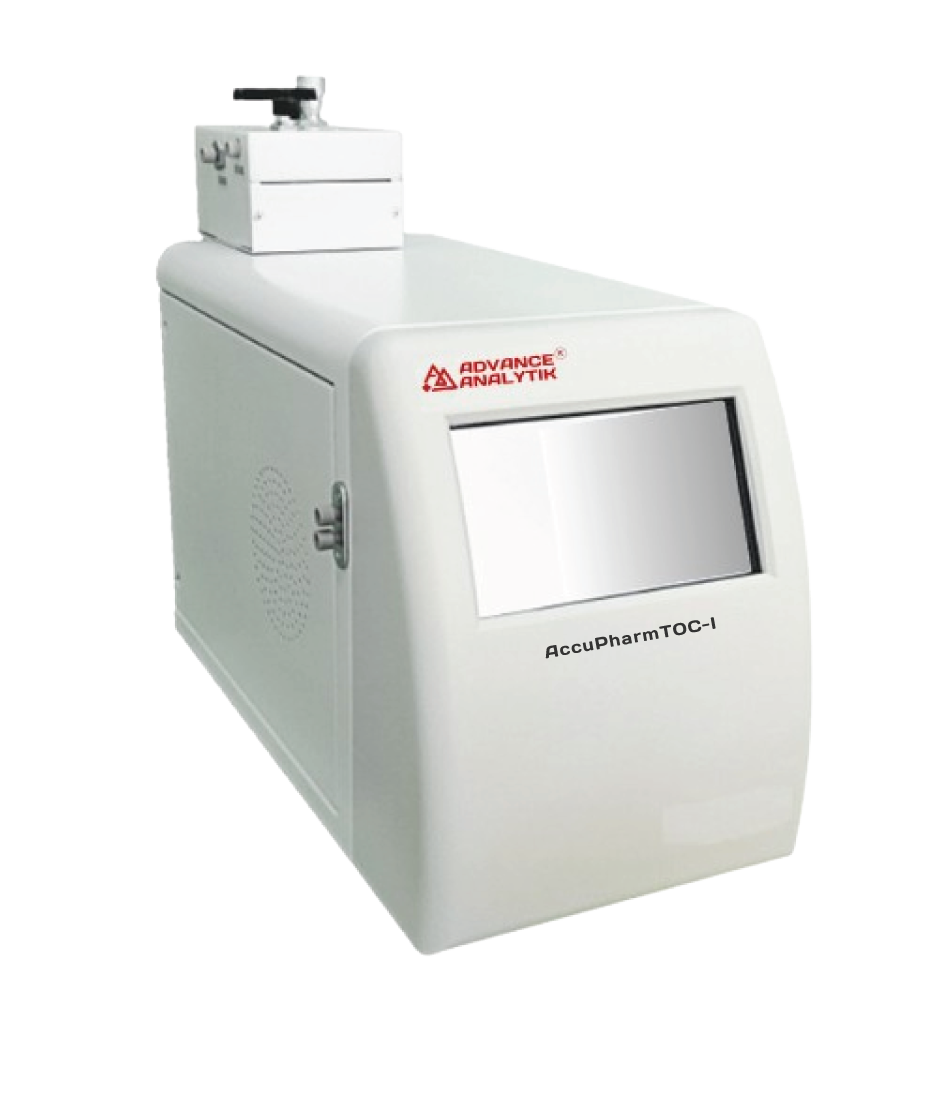

AccuPharmTOC-I Specifications

• Model: AccuPharmTOC-I
• Work Mode: Online and Offline
• Detection Range: 0 to 1000 ppb
• Detection Limit: 1 ppb
• Maximum Tolerance: ±5%
• Analysis Time: 3 minutes
• Response Time: Within 10 minutes

Sample Conditions

• Sample Temperature: 1–95°C
• Sample Flow Speed: 3 mL/min

Performance

• Repeatability Tolerance: ≤3%
• Drifting: ±5%

Environmental Conditions

• Operating Temperature: 10–40°C
• Temperature Change: ±5°C/day
• Relative Humidity: ≤85%

Power Supply

• Standard: AC 220V, 50/60Hz
• Optional: AC 110V, 50Hz
• Power Consumption: 100 W

Dimensions

• External Size (L × W × H): 440 × 220 × 405 mm
• Package Size (L × W × H): 640 × 490 × 440 mm

Weight

• Net Weight: 12.25 kg
• Gross Weight: 18 kg
