Viz Eco Solo (Single Channel Transmitter)

Viz Eco Solo (Single Channel Transmitter)

Model No: Single Channel Transmitter

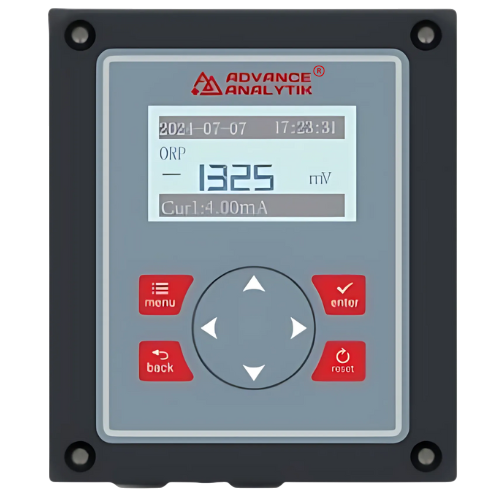

The Advance Analytik® Viz-Eco-Solo, a Single – channel transmitter, is an advanced instrument designed for comprehensive water quality monitoring. Compatible with multiple different sensors such as pH, DO, ORP,conductivity, turbidity, SS, COD, BOD, TOC, TSS, TDS, Nitrate, Nitrite, Color, Sludge Level, ISE, Residual Chlorine and others, this device offers versatility for a wide range of applications. Its plug-and-play sensor integration simplifies setup, while the flexible configuration allows users to adapt the system to their specific monitoring needs. The transmitter’s user-friendly interface enables real-time data visualization and seamless integration with data logging systems, ensuring efficient data management.

ENQUIRE NOW
DOWNLOAD CATALOGUE
Technical Specification

Measurement Parameters

Standard Water Quality Parameters

  • pH: 0–14 pH
  • Conductivity: 0–20 mS/cm
  • ORP: ±2000 mV
  • Dissolved Oxygen: 0–20 mg/L or 0–200% saturation
  • TDS: 0–20,000 ppm
  • Turbidity: 0.01–4000 NTU
  • Suspended Solids/Sludge: 0.01–20,000 mg/L
  • Temperature: 0–80°C

Biological & Organic Parameters

  • Chlorophyll: 0–500 µg/L
  • Blue Green Algae: 0–300,000 cells/mL
  • Oil in Water: 0–50 ppm

Nutrient & Chemical Parameters

  • Ammonia Nitrogen (NH4N): 0.1–3000 mg/L NH4N
  • Nitrate Nitrogen (NO3N): 0–3000 mg/L NO3N
  • Residual Chlorine: 0–20 mg/L

UV Visible Measurement

  • COD: 0–5000 mg/L
  • BOD: 0–5000 mg/L
  • TSS: 0–5000 mg/L
  • TOC: 0–5000 mg/L
  • Other Parameters: Available on request

ISE Parameters

  • Ammonia (NH3): 0.01–17,000 ppm as NH3
  • Cyanide (CN-): 0.2–260 ppm
  • Fluoride (F-): 0.02–19,000 ppm
  • Sodium (Na+): 0.01–100,000 ppm
  • Chloride (Cl-): 1.8–35,000 ppm
  • Water Hardness (Ca2+ / Mg2+): 0.5–40,000 ppm
  • Other ISE Available: On request
