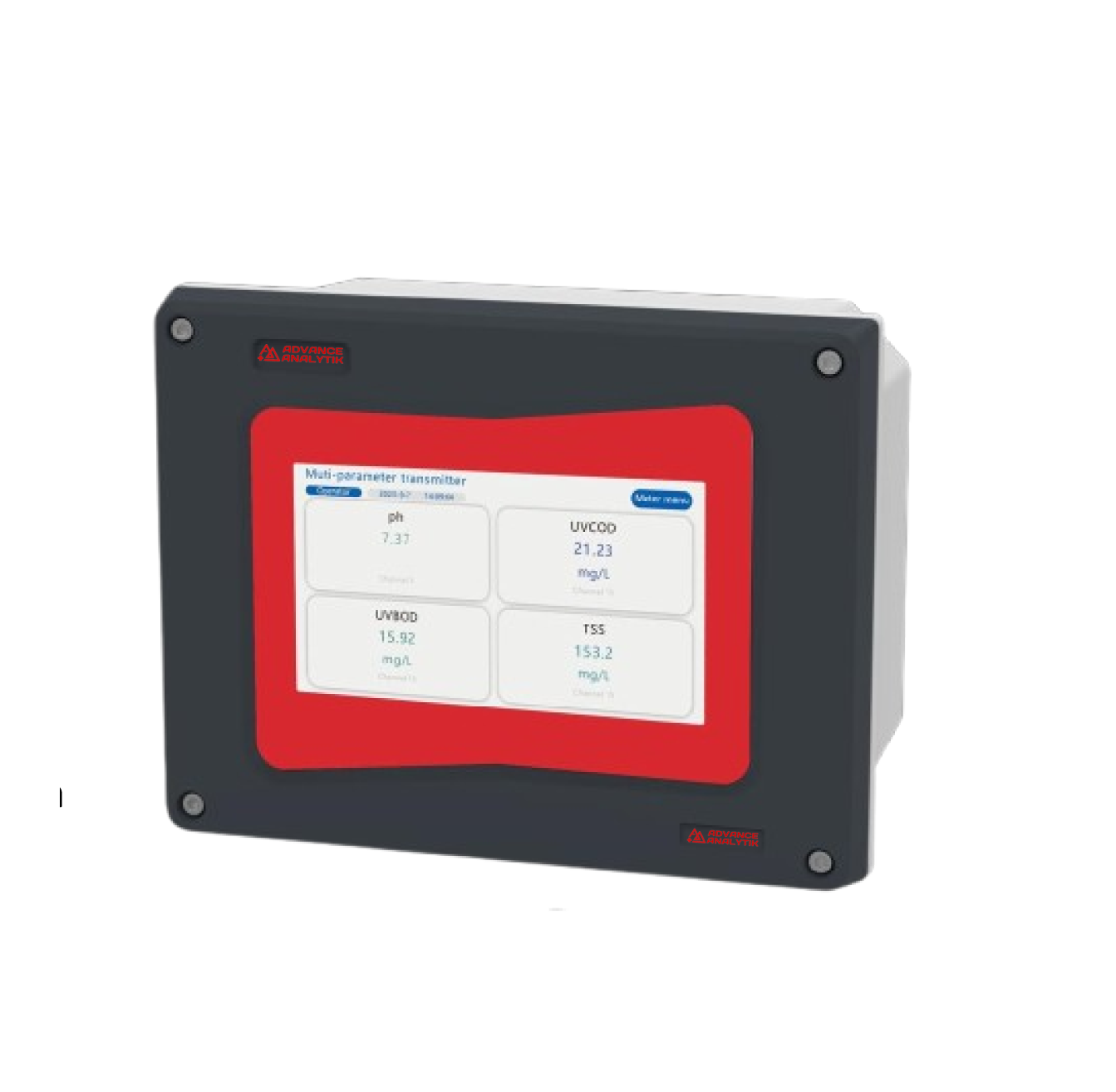

Viz Eco Multi (Multi Channel Transmitter)

Viz Eco Multi (Multi Channel Transmitter)

Model No: Multi Channel Transmitter

The Viz Eco Multi is a multi-channel
transmitter that offers an advanced
solution for monitoring multiple
parameters simultaneously, meeting a
variety of customer needs.
Designed for applications in water quality
monitoring across wastewater treatment
plants, waterworks, water stations,
surface water, and industrial settings, this
versatile transmitter brings unparalleled
flexibility and ease of use to the field. With
support for up to 7 sensors, various data
transmission options, and a user-friendly
interface, the Viz Eco Multi ensures
efficient integration, reduced operational
costs, and reliable parameter monitoring.

ENQUIRE NOW
DOWNLOAD CATALOGUE
Technical Specification

Measurement Parameters

Standard Water Quality Parameters

  • pH: 0–14 pH
  • Conductivity: 0–20 mS/cm
  • ORP: ±2000 mV
  • Dissolved Oxygen: 0–20 mg/L or 0–200% saturation
  • TDS: 0–20,000 ppm
  • Turbidity: 0.01–4000 NTU
  • Suspended Solids / Sludge: 0.01–20,000 mg/L
  • Temperature: 0–80°C

Biological & Organic Parameters

  • Chlorophyll: 0–500 µg/L
  • Blue Green Algae: 0–300,000 cells/mL
  • Oil in Water: 0–50 ppm

Nutrient & Chemical Parameters

  • Ammonia Nitrogen (NH4-N): 0.1–3000 mg/L NH4-N
  • Nitrate Nitrogen (NO3-N): 0–3000 mg/L NO3-N
  • Residual Chlorine: 0–20 mg/L

UV-Visible Measurement

  • COD: 0–5000 mg/L
  • BOD: 0–5000 mg/L
  • TSS: 0–5000 mg/L
  • TOC: 0–5000 mg/L
  • Other Parameters: Available on request

ISE Parameters

  • Ammonia (NH3): 0.01–17,000 ppm as NH3
  • Cyanide (CN-): 0.2–260 ppm
  • Fluoride (F-): 0.02–19,000 ppm
  • Sodium (Na+): 0.01–100,000 ppm
  • Chloride (Cl-): 1.8–35,000 ppm
  • Water Hardness (Ca2+ / Mg2+): 0.5–40,000 ppm
  • Other ISE Parameters: Available on request
